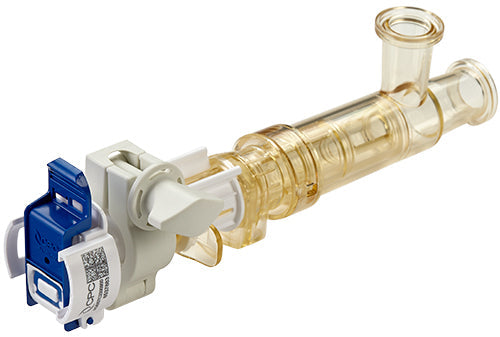

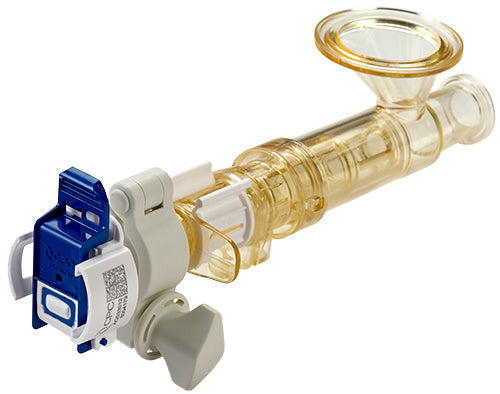

EZBio Steam-Thru Aseptiquik S Series Connector Assembly
Product Description
Sku:
Multiple SKUs available — see options below
Description The AseptiQuik® STC Connectors allow a quick and easy sterile connection between biopharmaceutical processing equipment and single-use systems. The Union of the two connectors into a single unit through a Foxx sanitary Tri-clamp allows AseptiQuik sterile connection to be steamed onto the stainless steel equipment via SIP. After the SIP cycle, a wide range of Single-Use Systems can be connected with the AseptiQuik G or AseptiQuik S Sterile connector. The SIP process can be done in advance, allowing a quick and easy sterile connection to the AseptiQuik half without waiting 30-60 minutes for SIP before harvest. The AseptiQuik STC...
Description The AseptiQuik® STC Connectors allow a quick and easy sterile connection between biopharmaceutical processing equipment and single-use systems. The Union of the two connectors into a single unit through a Foxx sanitary Tri-clamp allows AseptiQuik sterile connection to be steamed onto the stainless steel equipment via SIP. After the SIP cycle, a wide range of Single-Use Systems can be connected with the AseptiQuik G or AseptiQuik S Sterile connector. The SIP process can be done in advance, allowing a quick and easy sterile connection to the AseptiQuik half without waiting 30-60 minutes for SIP before harvest. The AseptiQuik STC...
Product Certification
Product Feature
3/4" x 1-1/2"
| SKU | Assembly Size | Sterility | Availability | Price | Qty |
|---|---|---|---|---|---|
| 446-340C-FLS | 3/4" x 1-1/2" | Sterile | In Stock | $1,815.89 reg |
|
| 446-341C-FLS | 3/4" x 1-1/2" | Non-Sterile | In Stock | $1,752.76 reg |
|
3/4" x 3/4"
| SKU | Assembly Size | Sterility | Availability | Price | Qty |
|---|---|---|---|---|---|
| 446-340D-FLS | 3/4" x 3/4" | Sterile | In Stock | $1,815.89 reg |
|
| 446-341D-FLS | 3/4" x 3/4" | Non-Sterile | In Stock | $1,752.76 reg |
|
No SKUs match your search.
Compact Sterile Connector Assembly For Single-Use Bioprocessing Systems
Description
The AseptiQuik® STC Connectors allow a quick and easy sterile connection between biopharmaceutical processing equipment and single-use systems. The Union of the two connectors into a single unit through a Foxx sanitary Tri-clamp allows AseptiQuik sterile connection to be steamed onto the stainless steel equipment via SIP. After the SIP cycle, a wide range of Single-Use Systems can be connected with the AseptiQuik G or AseptiQuik S Sterile connector. The SIP process can be done in advance, allowing a quick and easy sterile connection to the AseptiQuik half without waiting 30-60 minutes for SIP before harvest. The AseptiQuik STC Connector connects stainless steel processing equipment via 3/4"" or 1-1/2"" Sanitary Termination.
Specifications
| Total Length | 8.20" (208.2mm) |
| Height | 2.45in (62.2mm) |
| Sterility | Non-Sterile |
| Termination Size | 1 1/2" Sanitary |
| Steam Position | |
| Temperature | 39ºF to 104ºF (4ºC to 40ºC) |
| Pressure | Up to 35 psi, 2.4 bar (Stream-Thru II) |
| Flow Position | |
| Pressure | Vacuum to 20 psi, 1.4 bar |
